Cubesat Batt

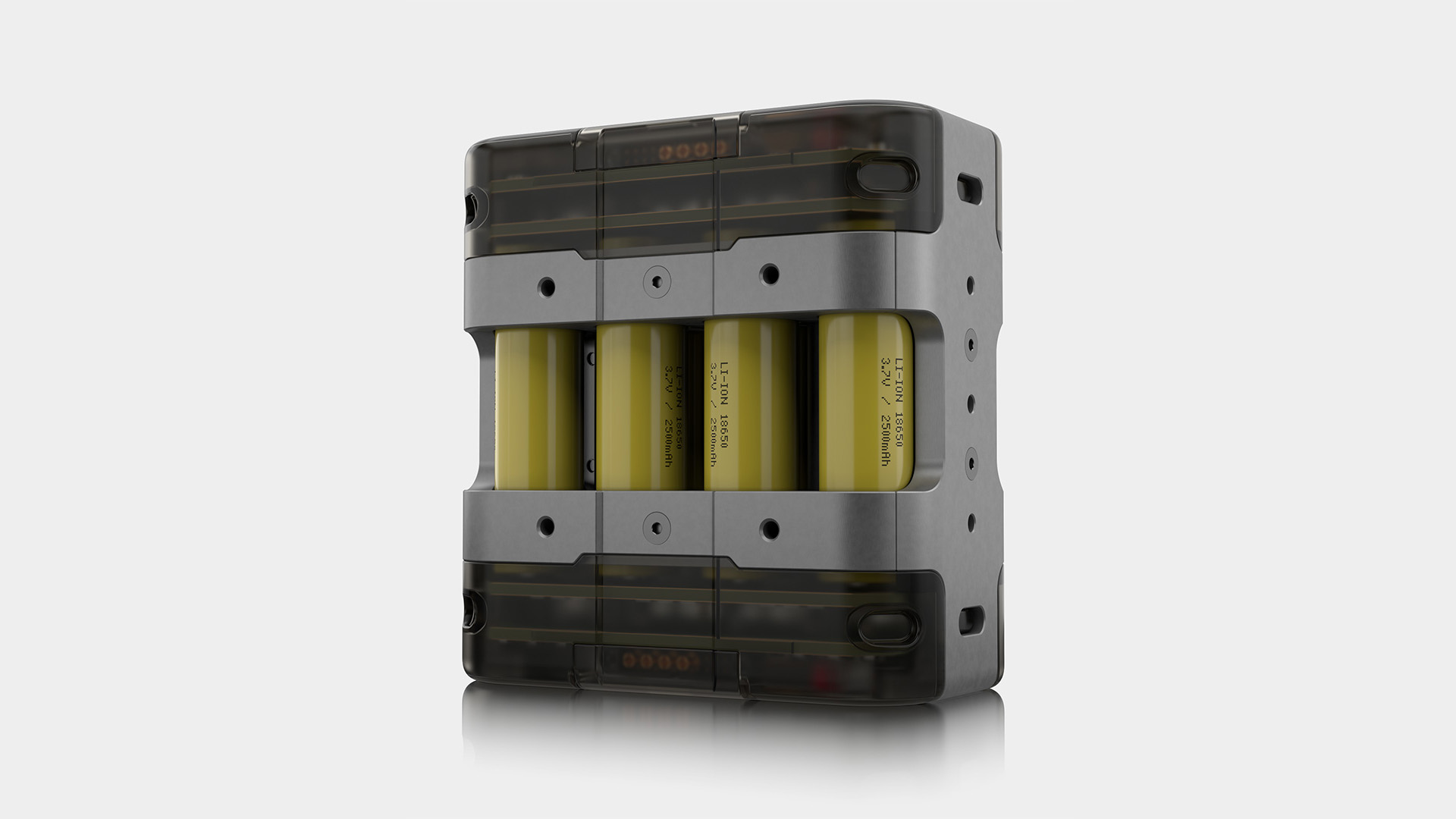

High-Performance 4S2P Li-Ion Battery Pack for CubeSats

This specialized Battery Pack is engineered for demanding space applications, particularly CubeSats. Utilizing eight high-current 18650 Li-Ion cells in a 4S2P configuration, it delivers superior power density and reliability.

  • Power & Energy: Provides 10.4V to 16.8V and can supply a continuous current of 15A to a load (up to 160W). It stores up to 100Wh of energy.
  • Fast Charging: Supports a minimum charge current of 5A across all configurations for quick turnaround.
  • Intelligent Management: Features cell balancing and advanced functionality, including Intelligent Charge Override.
  • Mechanical Design: The robust mechanical enclosure is designed for versatile mounting and installation in restricted volumes.

Client

-

Year

2020

Designer

Enrique Sifuentes

Role

Industrial Designer

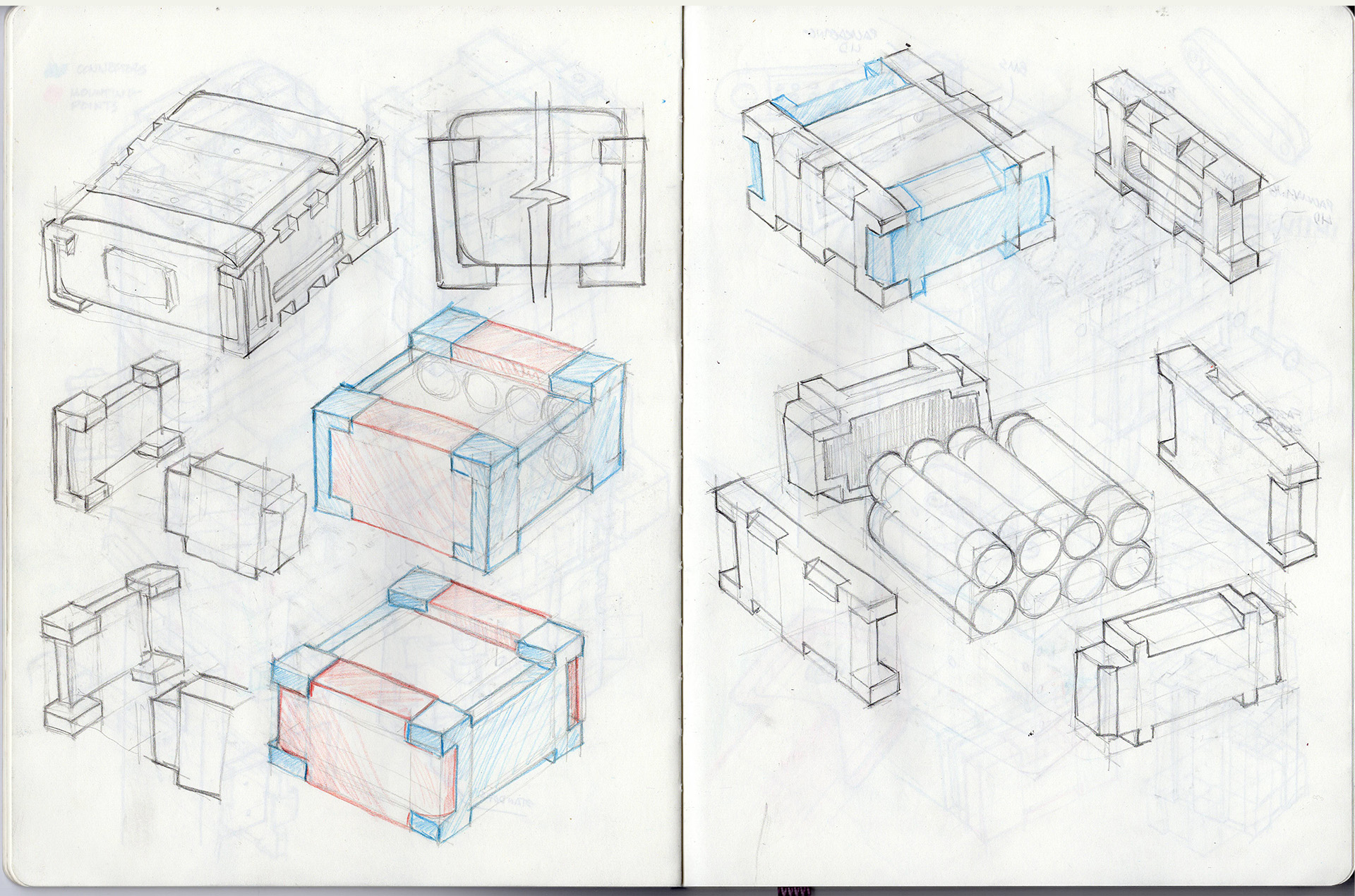

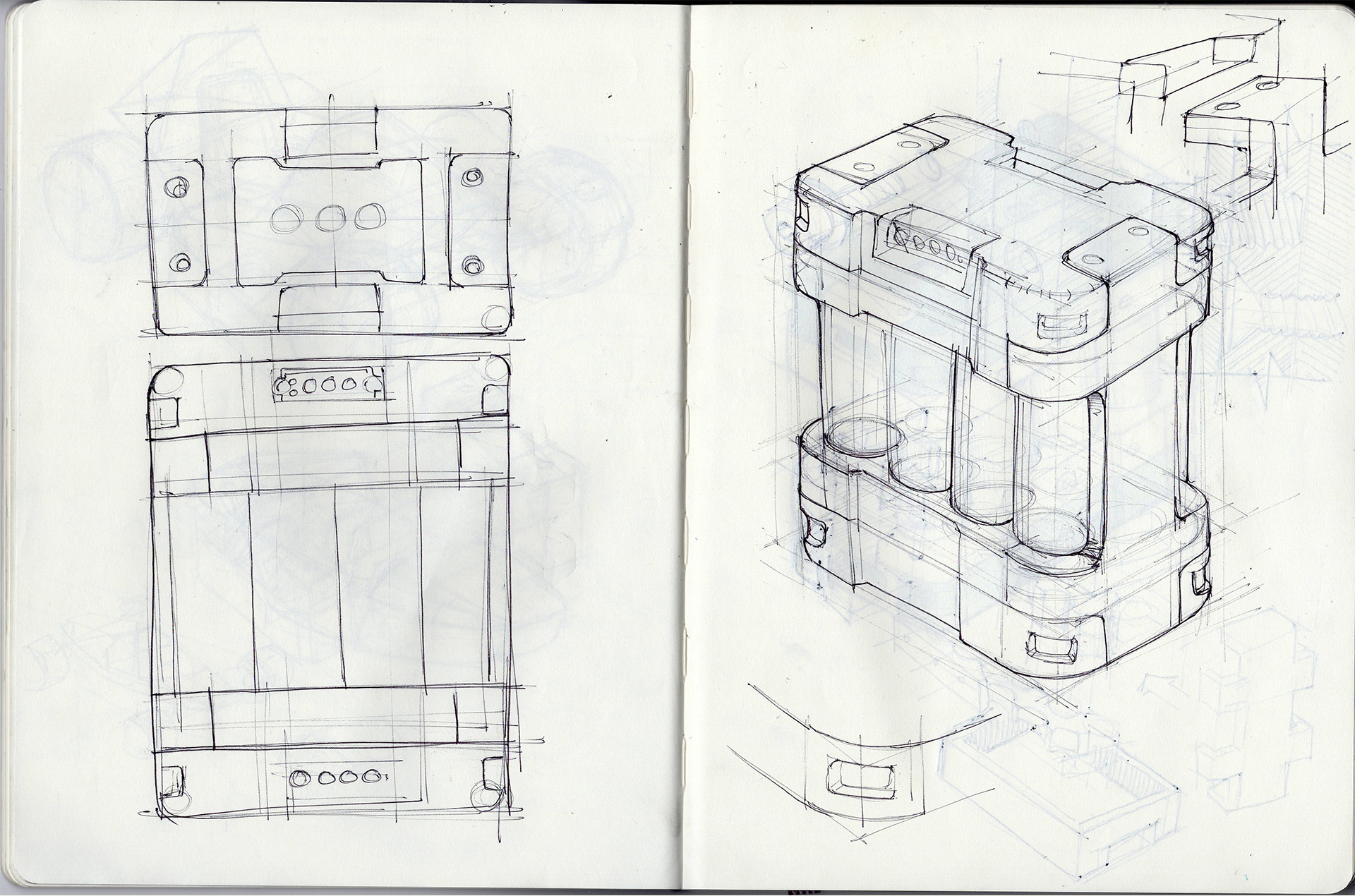

Concept Development

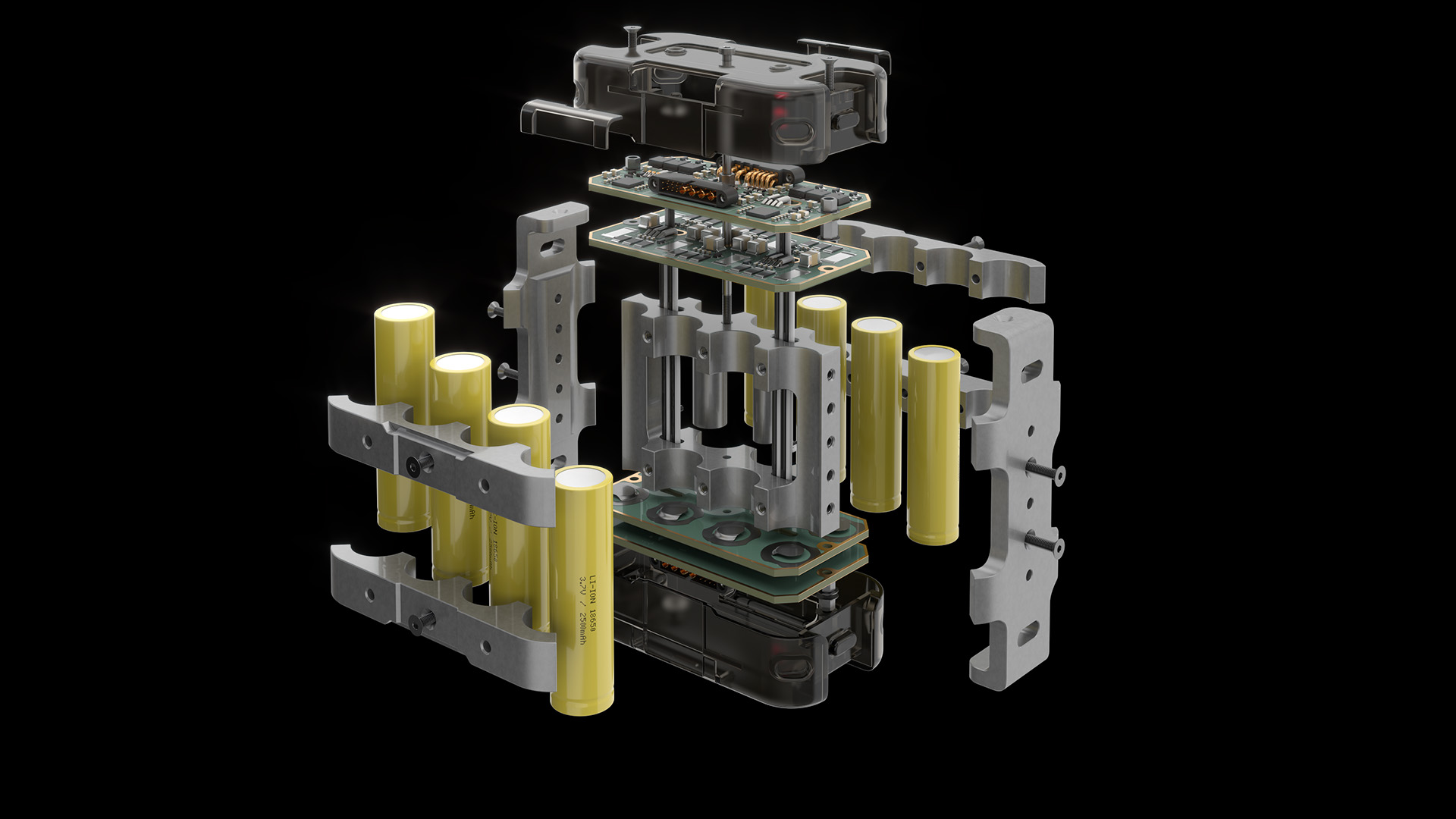

Detailed Exploded View: A technical illustration clearly depicting all components of the product and their assembly relationships.
