Cubesat 3U

Sailboat on computer controlled hydrofoils

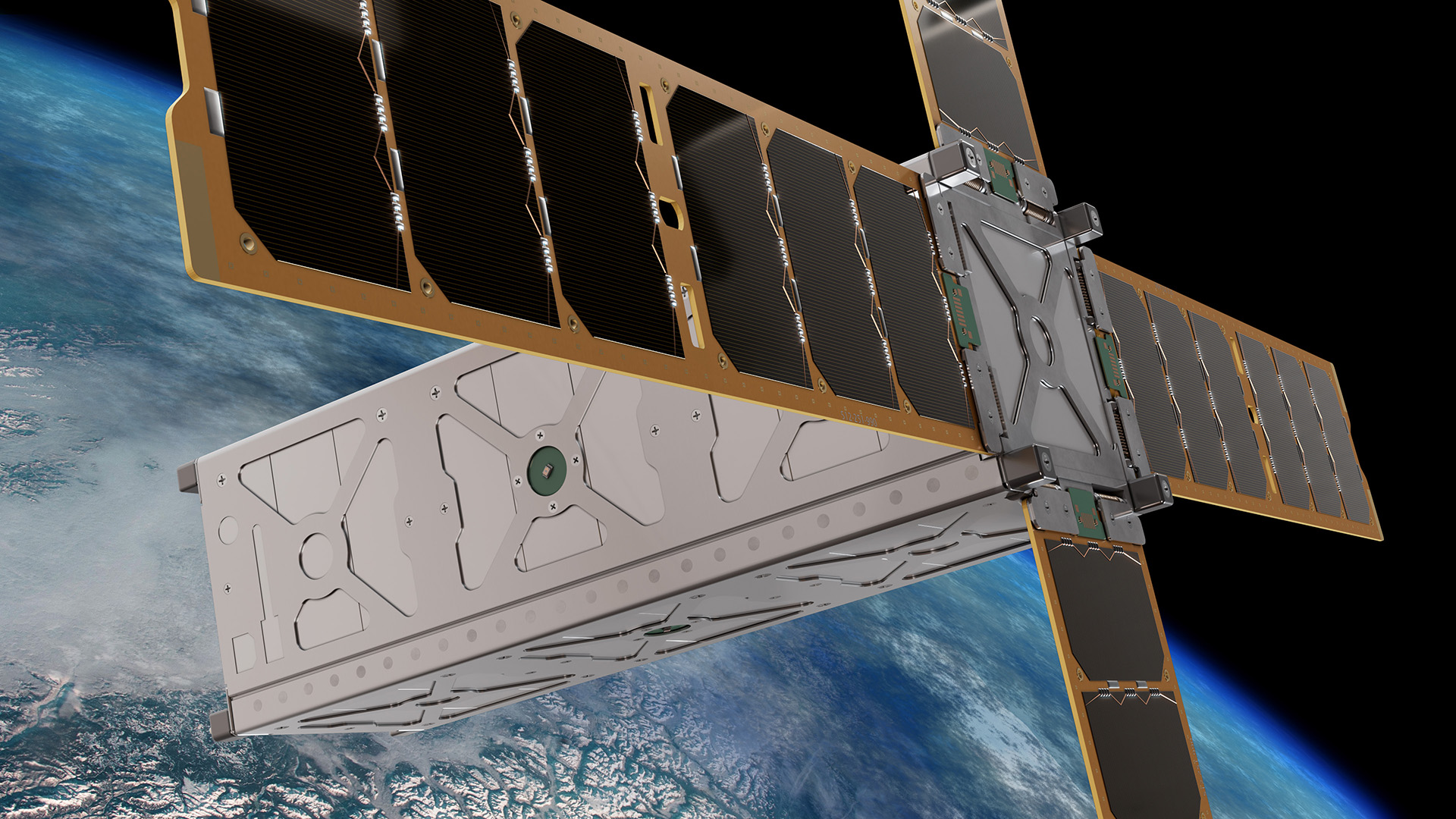

This 3U CubeSat chassis is meticulously designed and constructed from aluminum sheet metal, and plated to strictly adhere to the CubeSat Design Specification (CDH).

  • Robust Construction: Featuring a one-piece design, the chassis is extremely strong yet lightweight, ensuring maximum structural integrity throughout the demanding launch environment.
  • Optimal Volume: Each unit provides a clean 97mm x 97mm internal cross-sectional volume—the perfect space to securely house your nanosatellite's bus and payload modules.

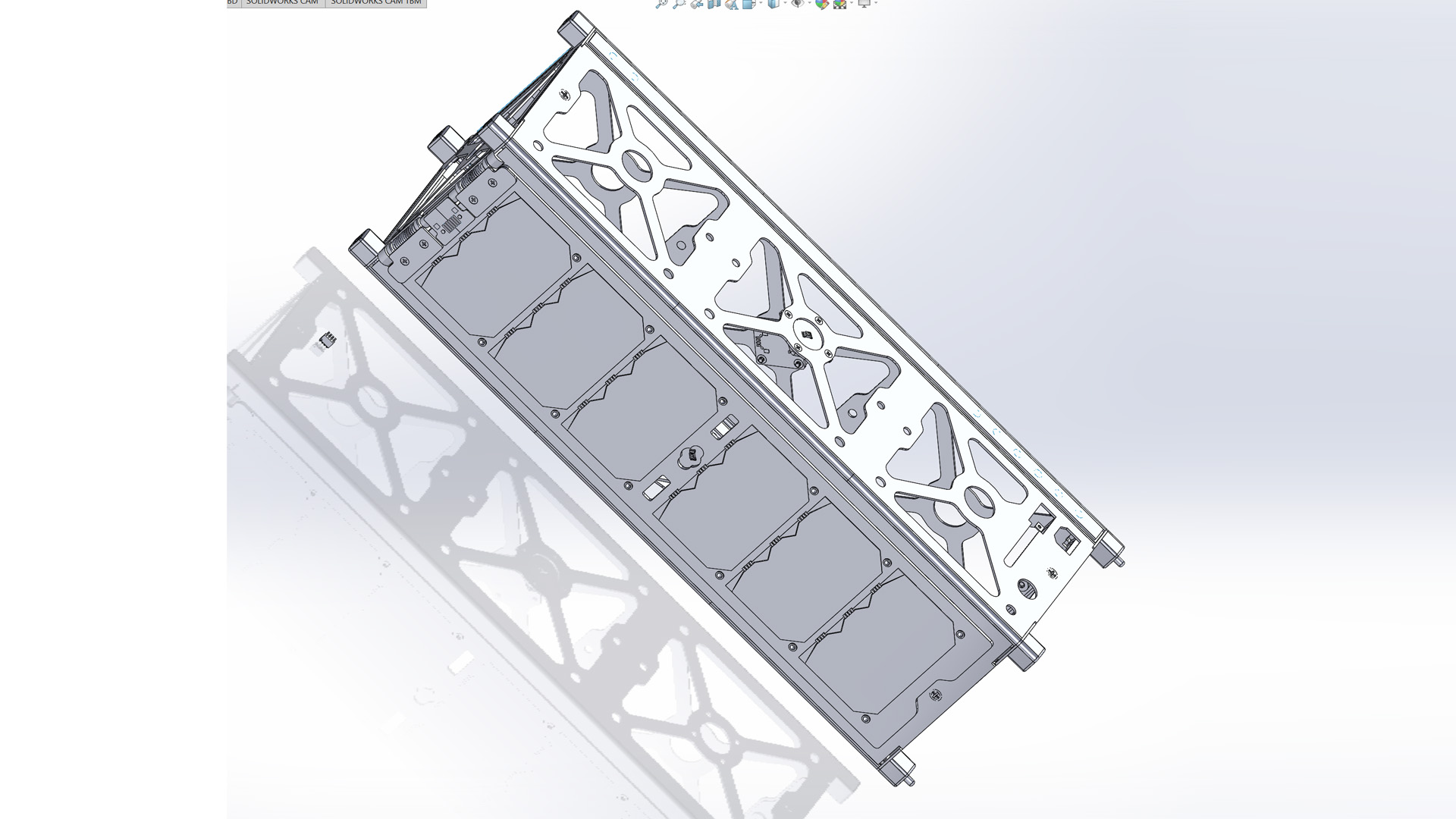

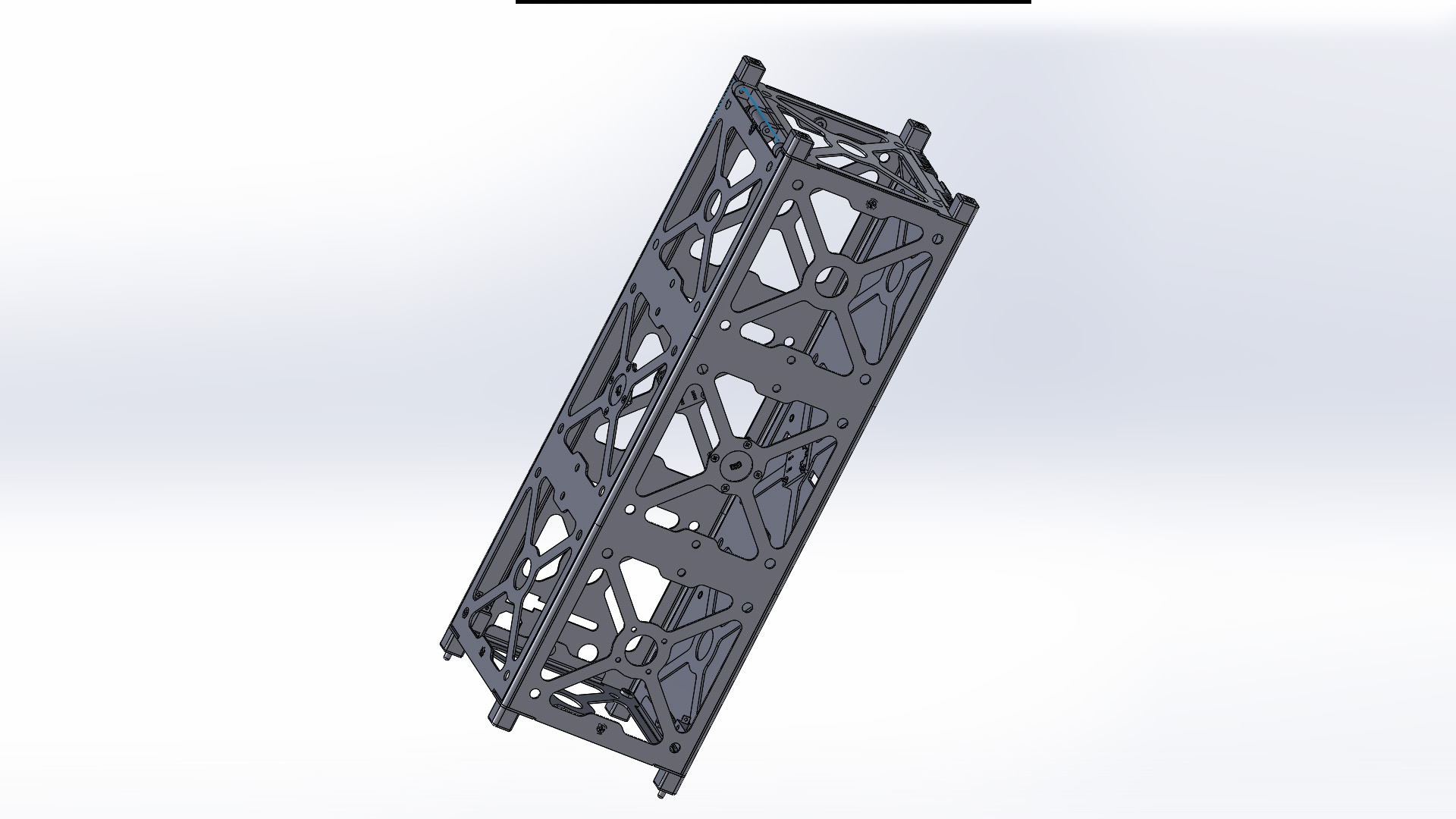

  • Modular Assembly: The core Chassis Walls are designed to be integrated with a Base Plate Assembly and a Cover Plate Assembly to form a complete, flight-ready CubeSat Kit structure.

Client

-

Year

2020

Designer

Enrique Sifuentes

Role

Industrial Designer

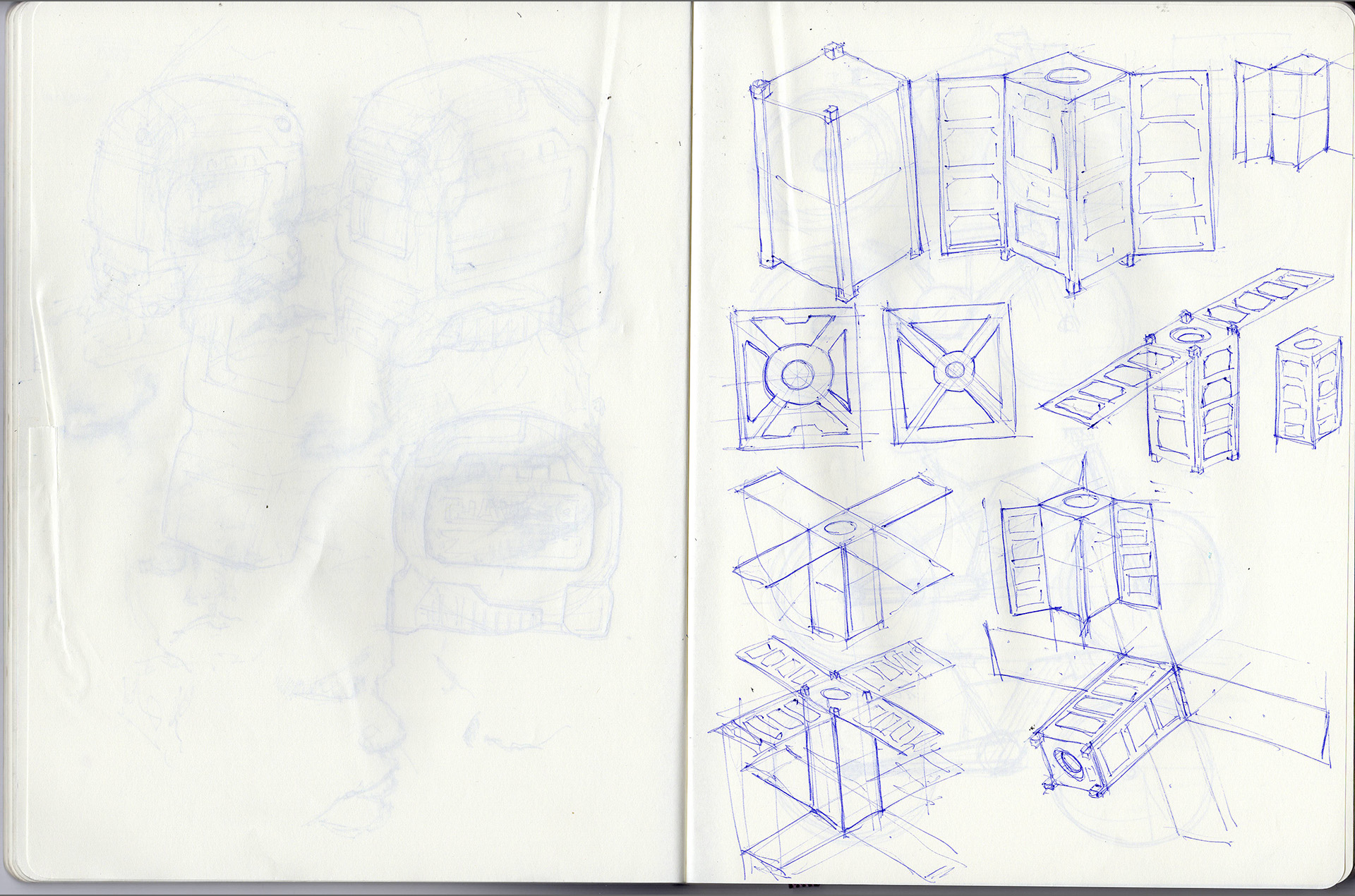

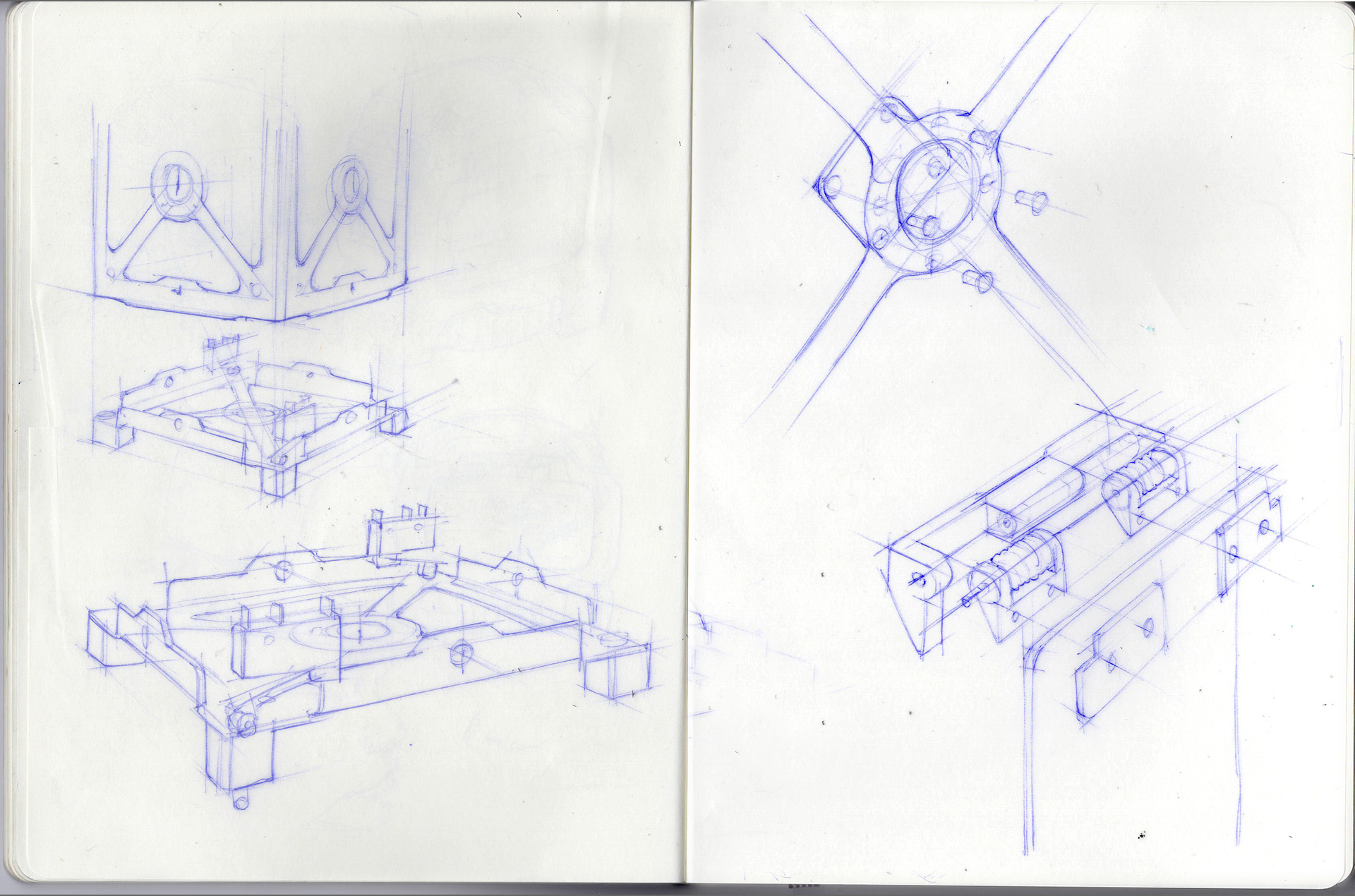

Concept Development

Detailed Exploded View: A technical illustration clearly depicting all components of the product and their assembly relationships.
